The tractor three point hitch system is a standardized attachment method used on modern agricultural tractors to connect implements such as plows, rotary cutters, cultivators, and other farming equipment.

This system allows the operator to easily lift, transport, and adjust implements during field operations. The three connection points consist of:

• Two lower lift arms

• One top link

Together, these three points form a triangular structure that provides stability, control, and precise implement positioning.

Top Link Connection in a 3 Point Hitch

The top link is the upper adjustable link that connects the tractor to the implement.

How the Top Link Connects

One end of the top link is attached to a bracket located behind the tractor seat, while the other end connects to the top bracket of the implement’s A-frame.

Both ends are secured using a top link pin, which is similar in design to a clevis pin.

Top Link Pin Features

Top link pins are:

• Unthreaded pins

• Secured with a linch pin or hairpin clip

• Available in different lengths depending on tractor category

• Manufactured with standardized pin diameters and ball socket sizes

These dimensions are standardized to ensure compatibility across different tractors and agricultural implements.

Lift Arm Connections in Tractor Linkage Systems

The lower lift arms are the main load-bearing components of a tractor’s 3-point hitch system.

Tractor Side Connection

One end of each lift arm is attached to the tractor axle housing using a special OEM mounting pin.

Implement Side Connection

The opposite end connects to the implement using a lift arm pin mounted to the lower brackets of the implement frame.

Depending on the implement size, different pin styles are used.

Types of Lift Arm Pins

Threaded Lift Arm Pins

Category 0, Category 1, and lighter Category 2 implements typically use:

• Threaded lift arm pins

• Pins bolted directly into the implement bracket

• Secured with linch pins or hairpin clips

Clevis Type Pins

For heavier Category 2 and Category 3 implements, clevis-style pins are used.

These pins pass through two brackets on the implement, supporting the pin at both ends and providing greater strength for heavy agricultural equipment.

Standardization of Tractor Hitch Pin Sizes

The pin diameters and ball socket sizes used in tractor hitch systems are standardized by the American Society of Agricultural Engineers (ASAE).

This standardization ensures that implements from different manufacturers can be used with compatible tractors.

Hitching Implements of Different Categories

In many cases, a tractor may need to operate implements from different hitch categories.

For example:

• A Category 2 tractor may operate a Category 1 rotary cutter

• A Category 1 implement can be adapted using bushings

Hitch Conversion Bushings

Bushings are used to adapt smaller pins to larger tractor hitch sockets.

Example conversion:

• Category 1 top link pin

• Category 1-to-2 bushing

• Fits a Category 2 tractor top link socket

This allows farmers to use older implements with newer tractors.

Special Lift Arm Pins for Multi-Category Compatibility

Some manufacturers produce dual-diameter lift arm pins.

These pins feature:

• A smaller threaded end for the implement bracket

• A larger unthreaded end that fits the tractor lift arm ball socket

Example configuration:

• 7/8" threaded end for Category 1 implement bracket

• 1-1/8" unthreaded end for Category 2 tractor lift arm socket

These specialized pins simplify implement compatibility across multiple tractor categories.

Importance of High-Quality Tractor Linkage Components

High-quality tractor linkage parts are essential for safe and efficient farming operations.

Premium linkage components provide:

• High load capacity

• Precision fitment

• Long service life

• Corrosion resistance

• Reliable implement attachment

Common components include:

• Top link assemblies

• Lift arm pins

• Hitch pins

• Lynch pins

• Clevis pins

• Stabilizer kits

• Replacement balls and sockets

These parts are critical for maintaining the performance of tractor three point hitch systems.

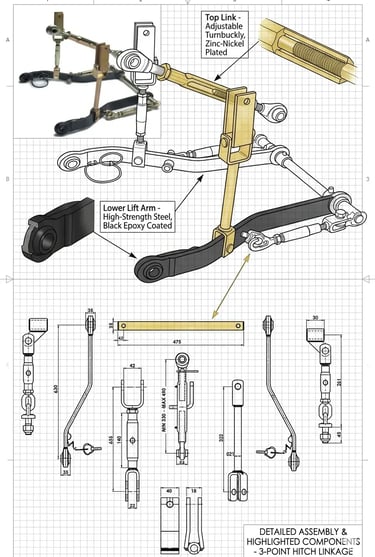

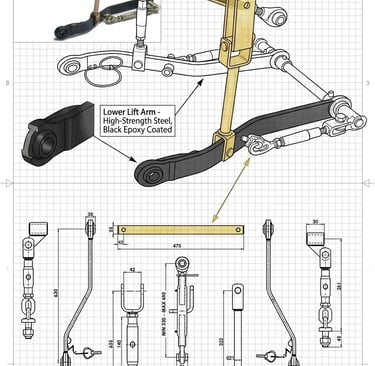

Tractor 3 Point Hitch Components

• Lift Arm Leveling Assembly

• Stabilizer Bracket

• Check Chain Eye Bolt

• Lift Arm

• Adjustable Stabilizer Arm

• Lynchpin

• Power-Take-Off (PTO)

• Check Chain Clevis

• Stay Strap

• Drawbar

• Swinging Drawbar

• Swinging Drawbar Hanger
